5 Simple Steps to Make a Wall Shelf

I built my first wall shelf in an afternoon using basic tools, and you can too. First, choose between floating or bracket-mounted; floating shelves hide hardware for a clean look, while brackets are easier to level. Next, locate your wall studs with a stud finder; you’ll need at least two for solid support. Then, cut your boards, creating a hollow box for floating shelves or a flat surface for brackets. After that, assemble your hidden frame or install brackets, ensuring everything is level. Finally, mount securely to the studs, slide the box on if using floating shelves, and add screws to prevent shifting. Proper execution of each step can significantly enhance stability and strength.

Floating or Bracket-Mounted: Pick Your Wall Shelf Type

So, you’re ready to build a wall shelf.

First, let’s pick between two main types. Here’s the breakdown:

1. Floating Shelves

These provide a clean, minimalist look. I slide a hollow box over a hidden frame. For shelf mounting, ensure the frame crosses at least two wall studs. Keep the depth at 12 inches or less; this helps prevent sagging and maintains stability.

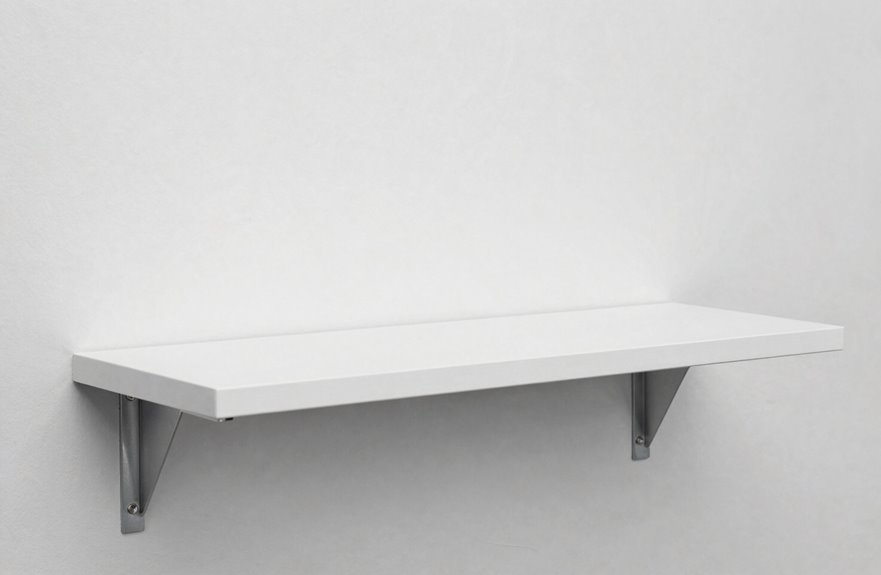

2. Bracket-Mounted Shelves

These utilize visible or hidden brackets. They are easier to level and adjust. You will still need wall studs or blocking behind the drywall for secure anchoring. To prevent sagging, space brackets no more than 28 inches apart if using standard plywood.

Which style suits your needs? Floating shelves offer a sleek appearance, while bracket-mounted shelves provide more flexibility. Either way, you’re creating something functional and stylish.

Check Your Studs and Source Materials by Method

Before I cut any wood, I need to know what’s inside my wall. I will grab my stud finder and slide it along the drywall until it beeps; those indicate my wall studs, the strong bones behind the surface.

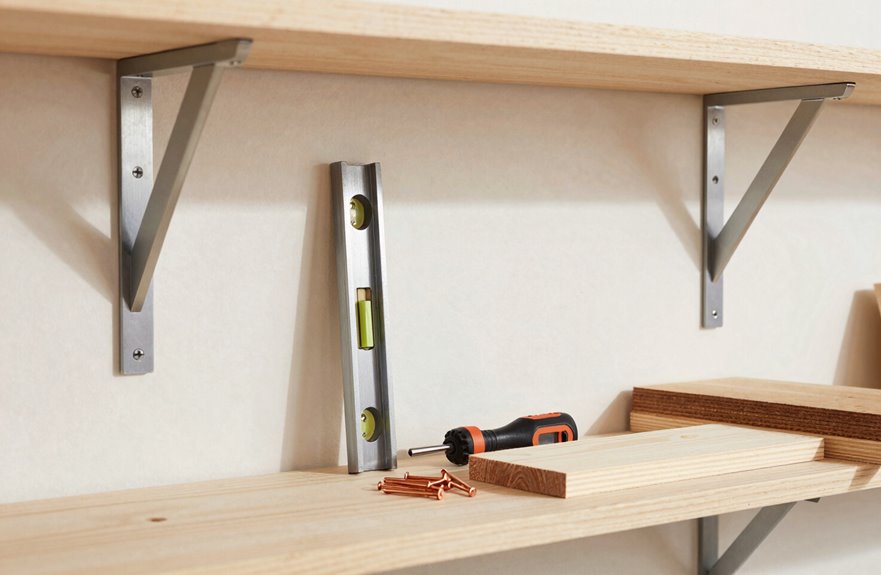

Finding Your Spots

My shelf needs to cross at least two studs for solid mounting. If they’re 16 inches apart, I will plan at least 17 inches of length; for 24-inch spacing, I need a minimum of 25 inches. Drywall anchors alone are insufficient for anything heavy.

Picking Materials

I prefer birch plywood for this—18 to 25 mm provides strength without bulk. Pine works too, but plywood resists warping better. I will sand and seal everything now, before mounting, to ensure a smooth finish where brackets conceal.

Let’s build something that endures.

Cut Boards and Build the Box or Shelf Surface

Grab your tape measure and pencil. It’s time to turn plywood into something useful.

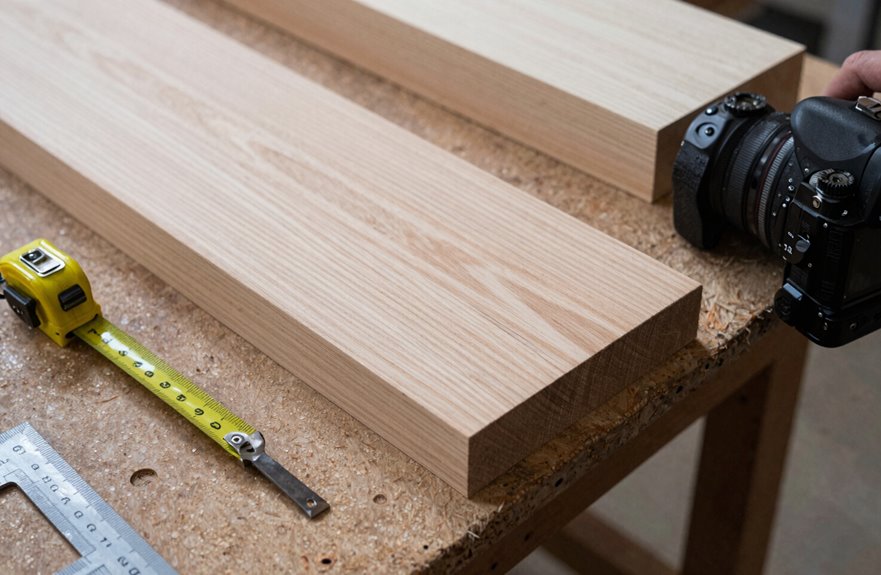

I cut two pieces from ½” plywood for my top and bottom shelf surfaces, making each 1½” shorter and ¾” narrower than my final size. I check twice; both pieces must match perfectly in width.

Building the box

I attach these panels to the side pieces with glue and nails, ensuring everything is square. The assembly feels solid when the joints line up cleanly. I bevel my front corners at 45 degrees to hide the end grain.

Before applying glue, I test fit my box over the inner frame. A snug fit is essential; gaps are unacceptable. I keep a level handy during assembly to confirm that my box stays square and sits flat against the wall later.

Assemble the Hidden Frame or Install Brackets

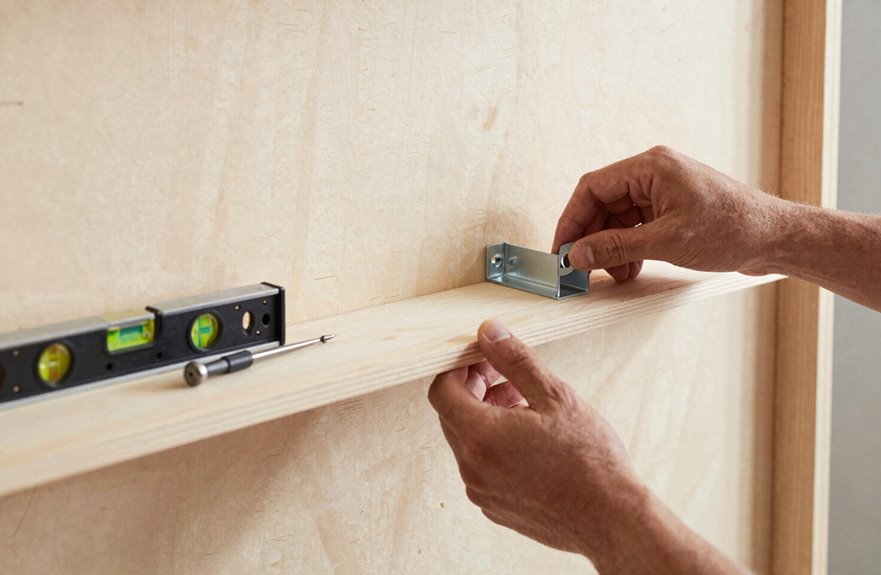

Since my shelf box is ready, I will build the hidden frame that makes this whole assembly functional. I cut 2x2s into an E-shape with a back piece and two supports, creating a hollow space for my box to slide over flat against the wall. I add 45-degree beveled corners to conceal the end grain where my shelf meets the frame.

Build a hidden E-frame from 2x2s with beveled corners, creating a hollow space for your shelf box to slide over flat against the wall.

Test Before Final Gluing

I slide my hollow box over the frame before gluing everything tight. If it fits snugly, I glue and clamp the joints square.

Mounting the Frame

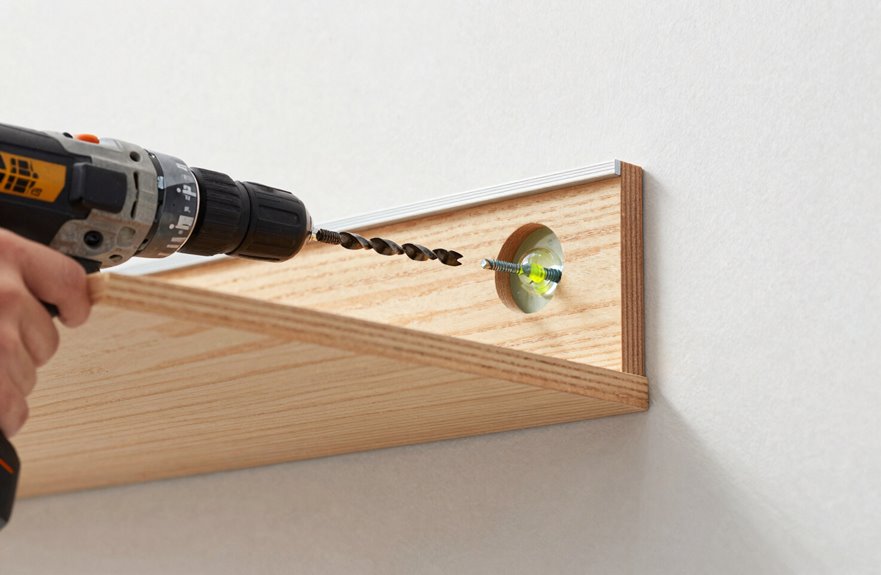

I locate the studs in my wall and mark where my frame crosses at least two of them. After leveling the frame, I drive wood screws through the back into those studs. For added security, I will later add a couple of screws through the top-back of my shelf box to prevent any sliding.

Mount Level, Slide On, and Secure Against Sliding

Now that my frame is built, how do I get it on the wall without a crooked mess?

1. Find the studs

I use a stud finder to locate two studs in my wall. I mark them clearly with a pencil.

2. Mount level and secure

I hold my frame against the wall, checking with a level to ensure it’s straight. I drill three wood screws into each stud. This keeps everything stable when I add weight.

3. Slide on the shelf

I slide the hollow shelf box right over the frame. It fits snug against the wall, creating a clean look.

4. Lock it in place

To prevent sliding, I add a couple screws through the shelf top into the frame.

5. Final check

I double-check my level and press down gently. It feels solid and secure, just as planned.
